Suffix Tree🔗

  • A suffix tree is a compressed trie containing all the suffixes of the given text as their keys and positions in the text as their values.
  • Allows particularly fast implementations of many important string operations
  • The Suffix tree for a text X of size n from an alphabet of size d
    • stores all the n(n-1)/2 suffixes of X in O(n) space.
    • can be constructed in O(dn) time
    • supports arbitrary pattern matching and prefix matching queries in O(dm) time, where m is length of the pattern

Example - Given a string banana$ create its suffix tree. NOTE: $ : represents string termination.

Generating the suffixes by hand would give us following : banana$, anana$, nana$, ana$, na$, a$ , $

Construct a trie for the data, which is a space-intensive method to represent it as a tree. Instead, create a suffix tree from the data.

image-20250515114245532

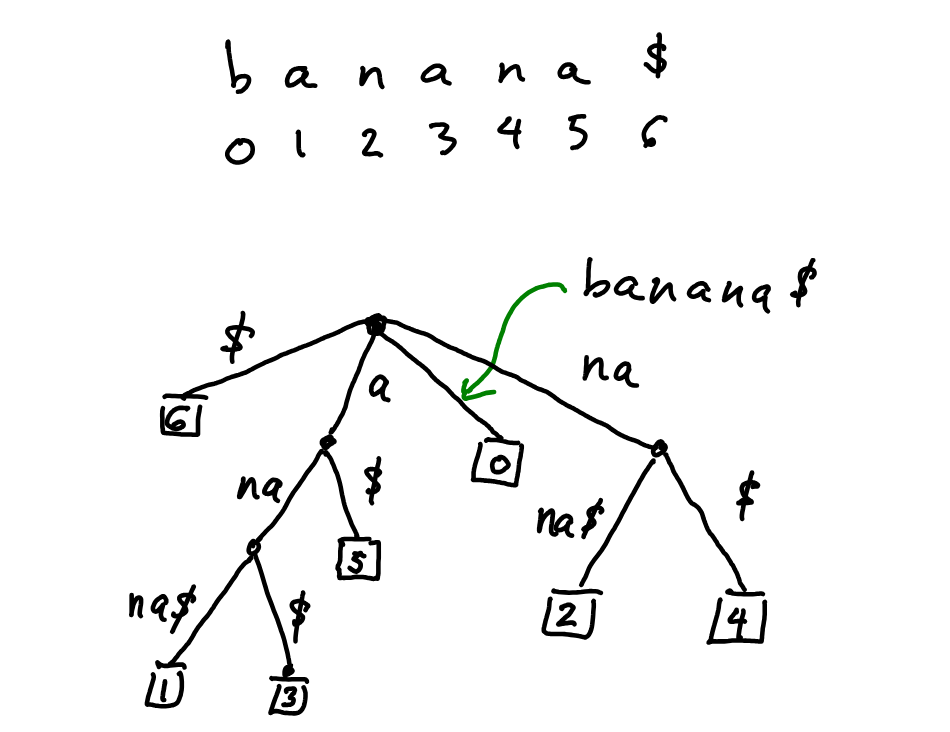

Above representation is not efficient in terms of space, we can represent a suffix as shown below.
image-20250515113825221
The number in the leaf refers to the index into s where the suffix represented by the leaf begins.
  • Actual algorithm work in following way, To add a new suffix to tree, we walk down the current tree, until we come to a place where the path leads off of the current tree.
  • This could happen at anywhere in tree, middle of the edge, or at an already existing node,
    • In first cast we split the edge in two and add a new node with branching factor of 2 in the middle
    • second case simply add a new edge from an already existing node.
  • Thus number of node in the tree is O(n) (NOTE: Naive construction above is still which can be optimized)
  • NOTE: Ukkonen’n Algorithm (linear time) for creating suffix tree. Link

Suffix Array🔗

  • in practice, people rarely implement full suffix trees, especially not Ukkonen’s algorithm
  • In a practical scenario : Suffix Array + LCP Array = Practical Suffix Tree Substitute
  • A suffix array is simply a sorted list of all suffixes of the string. Taking previous example.
Suffixes:         Sorted Order:
0: banana$        6: $
1: anana$         5: a$
2: nana$          3: ana$
3: ana$           1: anana$
4: na$            0: banana$
5: a$             4: na$
6: $              2: nana$
  • Suffix Array would be : [6, 5, 3, 1, 0, 4, 2]
  • LCP Array is Longest Common Prefix : It tells the length of the common prefix between consecutive suffixes in the sorted suffix array. Here LCP = [0, 1, 3, 0, 0, 2, 0]
Feature Suffix Tree Suffix Array + LCP
Construction Time O(n) with Ukkonen’s algo O(n log n) or O(n) with tricks
Space Usage High (nodes, pointers) Low (arrays only)
Ease of Implementation Very hard Easy to moderate
Pattern Matching O(m) O(m log n)
Use in Practice Rarely used directly Common (bioinformatics, search engines, etc.)

Suffix Array Implementation🔗

  • Build Suffix Array in
  • Build LCP Array using Kasai’s algorithm in
  • Supports
    • Pattern Matching
    • Longest Repeated Substring
    • Count of distinct substring
#include <bits/stdc++.h>
using namespace std;

class SuffixStructure {
private:
    string s;
    int n;
    vector<int> sa, rank, lcp;

    void buildSA() {
        sa.resize(n);
        vector<int> tmp(n), cnt(max(256, n));
        iota(sa.begin(), sa.end(), 0);
        rank.resize(n);
        for (int i = 0; i < n; ++i) rank[i] = s[i];

        for (int k = 1; k < n; k <<= 1) {
            auto cmp = [&](int i, int j) {
                if (rank[i] != rank[j]) return rank[i] < rank[j];
                int ri = (i + k < n) ? rank[i + k] : -1;
                int rj = (j + k < n) ? rank[j + k] : -1;
                return ri < rj;
            };
            sort(sa.begin(), sa.end(), cmp);

            tmp[sa[0]] = 0;
            for (int i = 1; i < n; ++i)
                tmp[sa[i]] = tmp[sa[i - 1]] + cmp(sa[i - 1], sa[i]);
            rank = tmp;
        }
    }

    void buildLCP() {
        lcp.resize(n);
        vector<int> inv(n);
        for (int i = 0; i < n; ++i) inv[sa[i]] = i;

        int k = 0;
        for (int i = 0; i < n; ++i) {
            if (inv[i] == 0) continue;
            int j = sa[inv[i] - 1];
            while (i + k < n && j + k < n && s[i + k] == s[j + k]) k++;
            lcp[inv[i]] = k;
            if (k) k--;
        }
    }

public:
    SuffixStructure(const string &str) : s(str + "$"), n(str.size() + 1) {
        buildSA();
        buildLCP();
    }

    // Find if pattern exists in O(m log n)
    bool contains(const string &pattern) {
        int l = 0, r = n - 1;
        while (l <= r) {
            int m = (l + r) / 2;
            string suffix = s.substr(sa[m], pattern.size());
            if (suffix == pattern) return true;
            else if (suffix < pattern) l = m + 1;
            else r = m - 1;
        }
        return false;
    }

    // Longest repeated substring
    string longestRepeatedSubstring() {
        int len = 0, pos = 0;
        for (int i = 1; i < n; ++i) {
            if (lcp[i] > len) {
                len = lcp[i];
                pos = sa[i];
            }
        }
        return s.substr(pos, len);
    }

    // Number of distinct substrings
    long long countDistinctSubstrings() {
        long long total = 1LL * n * (n - 1) / 2; // sum of lengths of all suffixes
        long long repeated = accumulate(lcp.begin(), lcp.end(), 0LL);
        return total - repeated;
    }

    // Getters
    vector<int> getSA() { return sa; }
    vector<int> getLCP() { return lcp; }
};

Problems🔗

Problem Problem Type Optimal with Notes
#336. Palindrome Pairs Substring checks Trie / Suffix tree idea Though typically solved with tries, suffix structures help in understanding efficient string lookups.
#472. Concatenated Words Substring parsing Trie / DP Suffix tree logic helps if asked to optimize DP further.
#920. Number of Music Playlists Rare use case DP + Combinatorics Suffix trees aren’t a fit here, but LCP might be used to optimize substring checks.
#1044. Longest Duplicate Substring Direct application Suffix Array + LCP This is the clearest modern Suffix Tree replacement problem on LeetCode.
#1153. String Compression II Optimization DP + Preprocessing Advanced string structure can help, but not common in brute-force.
#1326. Minimum Number of Taps to Open to Water a Garden Interval covering Segment Tree Not suffix-related, but string segment problems sometimes align with this.
#1178. Number of Valid Words for Each Puzzle Bitmask / Trie Trie / hashing Again, tries are more practical here.

Summary🔗

  • Most of technical interviews will not ask for Suffix Tree/Suffix Array unless you are going for competitive coding, in that case Suffix Array + LCP would be enough to answer most of the questions
